How Does A Refrigerated Container Work?

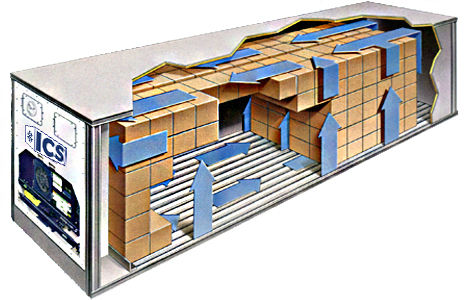

All refrigerated storage structures are equipped to produce bottom air delivery designed to distribute chilled air from the floor, via specific T-shaped decking, with the advantage of producing a consistent and uniform flow of air across the entire enclosed area starting beneath the stored products surface, powerful enough to ensure a perfect air exchange throughout with the ability to maintain temperatures regardless of ambient temperature.

Controlling Temperature

Most perishable goods and other temperature sensitive products require a very specific temperature to preserve their quality during storage.

Our refrigerated storage units can control the temperature set point range from +/- 25° Celsius beyond providing the following features:

Controlling Humidity

Humidity control means dehumidification. Humidity is a quantity of water found inside the air, very small drops of water suspended within. Humidity comes from the evaporation from the cargo itself or from the air entering the Reefer through the opened fresh air exchange system (ventilation).

Various products require a reduced level of humidity inside the container. CMA CGM Reefer containers are equipped with a system capable of controlling the humidity within the range of 95% to 55%.

Atmosphere Control

Modifying the composition on the air in the refrigerated storage unit, especially CO2 and O2 levels significantly slows the ripening process of fresh produce and extends shelf life.

----

Staff can regularly monitor the cold storage units using an electronic microprocessor and data-loggers, which record all parameters even when the equipment is unplugged.

The data-logger gives us information on:

Supply air temperature
Return air temperature
Ambient temperature
Cargo temperature (optional)
Humidity level

Other actions which could impact on the quality of the merchandise are also monitored and recorded:

Tuning operations
Modifying the parameters
Interventions
Breakdowns
Alarms

Call for more information regarding the aforementioned features.

What are the advantages of using our refrigerated storage containers?

Reliable solution, low operation and maintenance cost

Simple to install and easy to access, no assembly or construction required

Suitable for any stored product requiring temperature control, such as common refrigerants, natural, pharmaceutical, industrial etc…

Stainless steel interior for high hygiene and low corrosion risk

Should your business move you refrigerated storage unit can move along with you

Extend your cold storage space to an outdoor area by expanding without compromising your indoor facility.

These Temperature controlled Storage Units are supplied with a built-in compressor and coil system connection already complete ready to hook up to your main power source. With a clean appeal and simple installation these units provide instant cold storage space without looking like a temporary set-up.
